CRAFTON EQUIPMENT, INC
PO BOX 39 106 Dollie Lane VAN BUREN, MO 63965
BILL CELL:573-660-0049 EMAIL:craftonstore@centurytel.net

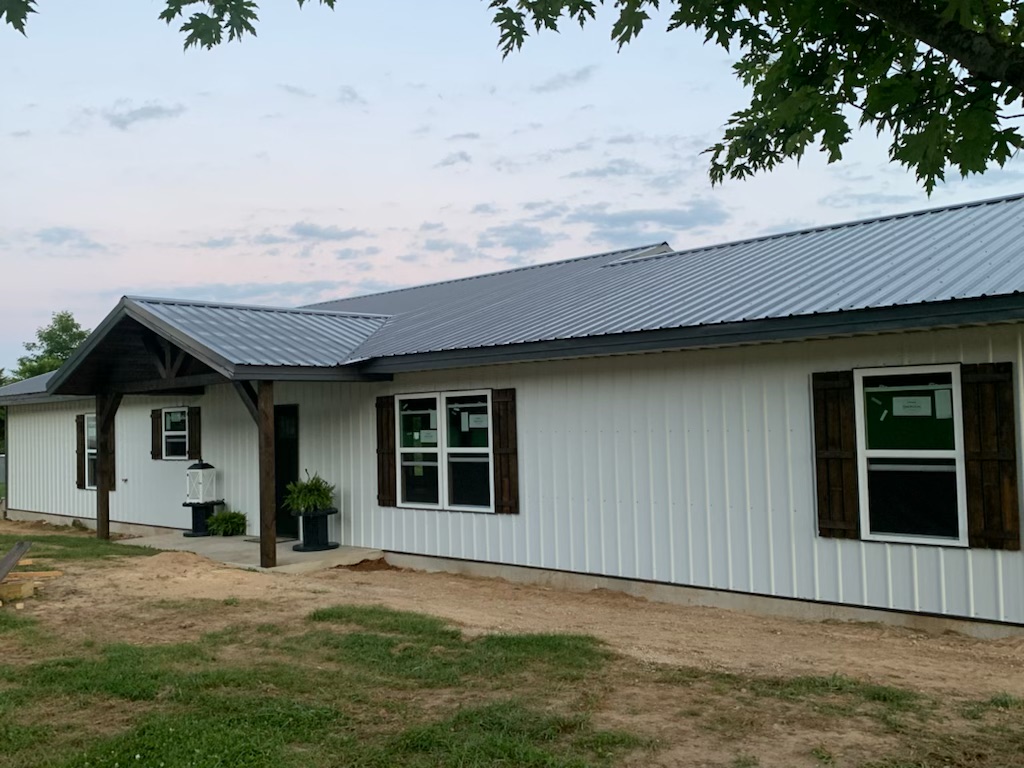

WE BUILD METAL HOUSES

* DUE TO LUMBER AND MATERIAL PRICING AT THIS TIME PRICES ARE SUBJECT TO CHANGE WITHOUT NOTICE!
METAL HOUSE PACKAGES STARTING AT $59 SQ FT. WHICH INCLUDES:
RUFF IN PLUMBING, CONCRETE SLAB FLOOR, OPEN FRAME INTERIOR PARTITIONS.
COMPLETELY INSULATED WITH OPEN CELL FOAM INSULATION.
INCLUDES UP TO 8-WINDOWS (VINYL PANE INSULATED), DECORATIVE FRONT ENTRY DOOR, REAR DOOR AND 1-SLIDER OR FRENCH DOOR.
EXTERIOR OF HOUSE IS 29 GA. 40 YEAR WARRANTY METAL WITH 2' SOFFITT FASCIA OVERHANG. PORCHES ARE $29 SQ FT WHICH INCLUDES: CONCRETE FLOORS AND METAL CEILINGS.
HOUSE CONSTRUCTION IS 2X4 OR 2X6 STUDS ON 16" OR 24" CENTERS.
FACTORY TRUSSES 2' ON CENTER WITH VAULTED CEILING OPTION IN LIVING ROOM, KITCHEN (GREAT ROOM).
ALL BUILT IN A VERY SHORT TIME FRAME ON YOUR LEVEL SITE WITH CUSTOMER FURNISHING THE NECESSARY GRADE GRAVEL.
CONTACT US FOR MORE INFO.

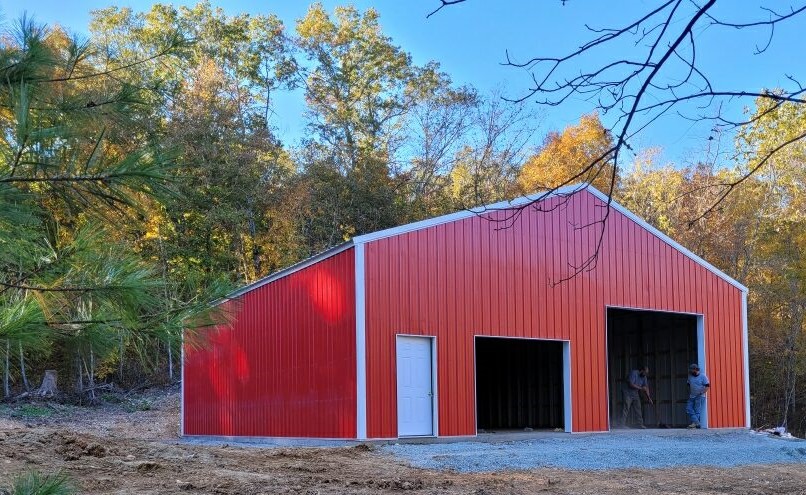

POLE BARN PACKAGE



ALL OUR HAY AND POLE BARNS ARE CONSTRUCTED WITH STRENGTH AND LONGEVITY AS THE BASIS FOR DESIGN. WE START WITH FULL SIZE 6"X6" TREATED SQUARE POSTS WHICH ARE A MINIMUM OF 2' IN GROUND. NEXT WE USE A 2"X6" TREATED BOTTOM WRAP AND A 2" X 6" DOUBLE BEAM TOP WRAP. THE METAL IS 29 GAUGE HEAVY DUTY RIB STEEL PAINTED. ALL TRUSSES ARE 5' O.C. LOAD ENGINEERED AND CARRY MINIMUM 25LB LOAD RATING.

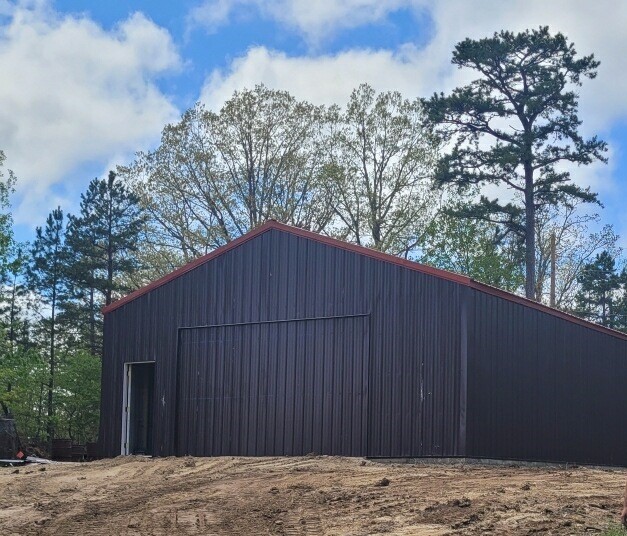

STUDWALL BUILDING


Click picture to ZOOM

OUR GARAGE AND SHOP BUILDINGS ARE BUILT WITH 2X4 OR 2X6 STUDS 2' ON CENTER WITH TREATED BOTTOM PLATE. THE WALLS ARE THEN WRAPPED WITH 2X4 APPROXIMATELY 30" ON CENTER BEFORE THE METAL GOES ON. THE BASE OF THE WALL HAS METAL BASE GUARD TO KEEP OUT INSECTS, DIRT, ETC. OUR TRUSSES ARE 2X6 SPACED ON 4' CENTER 2X4 PURLINS 24" ON CENTER ON ROOF. THIS DESIGN ALLOWS FOR EASIER WIRING AND INSULATION OF YOUR BUILDING.





We will build to your specs, just give us a call. BUILDING OPTIONS AVAILABLE

30X30X10 $14,900               40X40X12 $25,900
30X40X10 $15,900               40X60X12 $34,900
30X50X10 $22,900               40X60X16 $38,900
30X60X10 $27,900               40X80X16 $49,900


1. Custom height charge each additional 2ft of height starting at:
*on 30ft wide x 40ft, 50ft or 60ft length $1500.00
*on 40ft wide x 50ft or 60ft length $2000.00
price includes material & labor
2. Soffit/Fascia-width options 12" 16" or 24" $25.00 per linear ft.
3. Wainscot $15.00 per linear ft.
4. Additional slider doors 10ft or 12ft wide $900.00 each.
5. Walk doors $500.00 each, Vinyl thermo pane windows $500.00 each.
6. Additional overhead door opening framed and trimmed $300.00 each
7. Solex insulation (vapor barrier R-7) $1.25 sq ft installed.. Open cell foam insulation available.
8. Metal ceiling installed $4.00 sq ft.
9. 2' x 2' Cupola or 3' x 3' Cupola ask for quote.
10. Concrete pads on customers level site with customers grade gravel-monolithic free float floor 4 to 5" thick start at $6.50 sq ft.
11. Electric wiring available.
12. Call for quote on overhead doors installed in your building.

Price includes painted metal, trusses 4' or 5' on center with studwalls or posts, 1-overhead door opening, 1-steel entry door, material and labor on customers level site. Many options available. Sales tax on material only

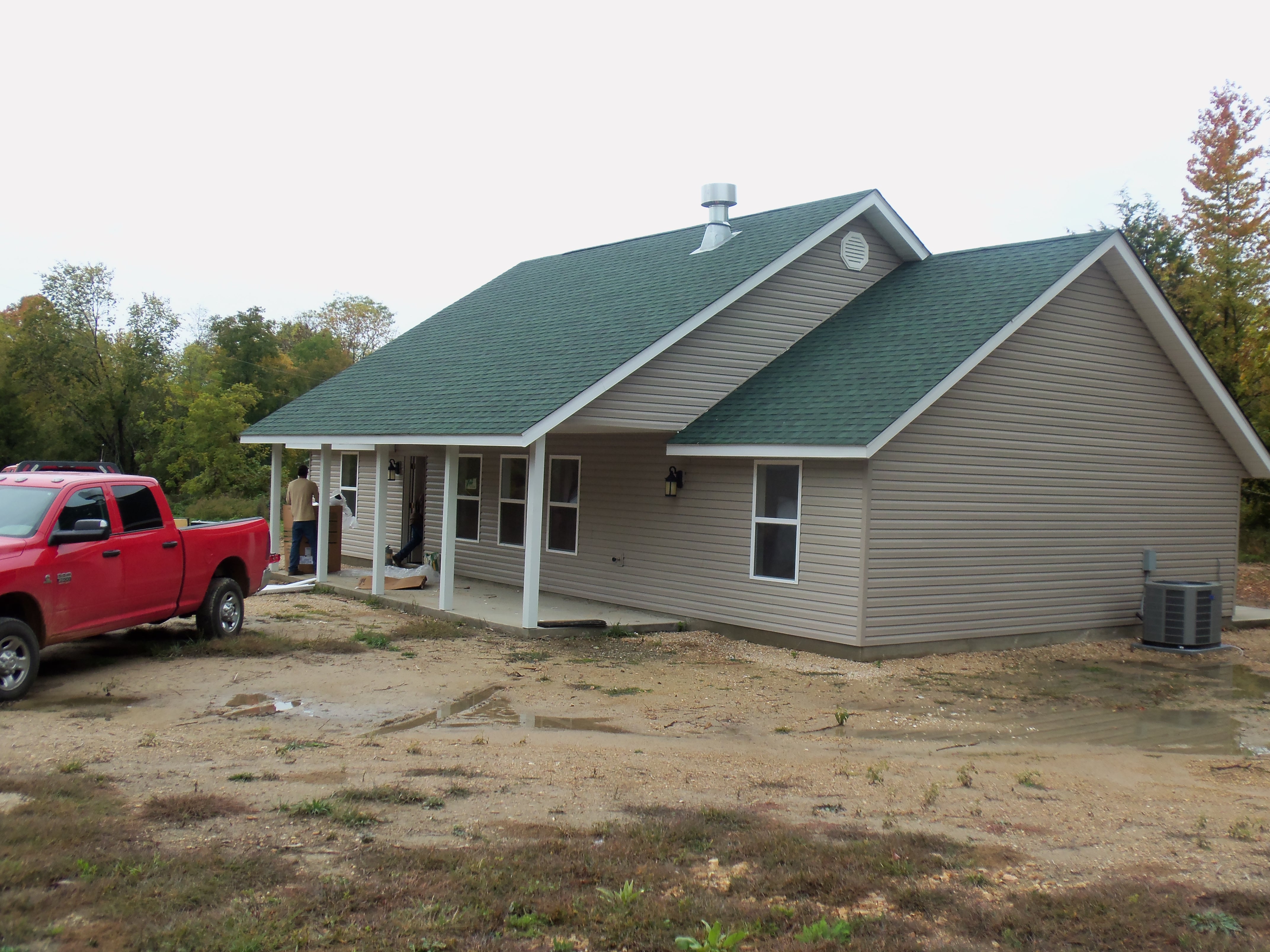

NEW HOMES
